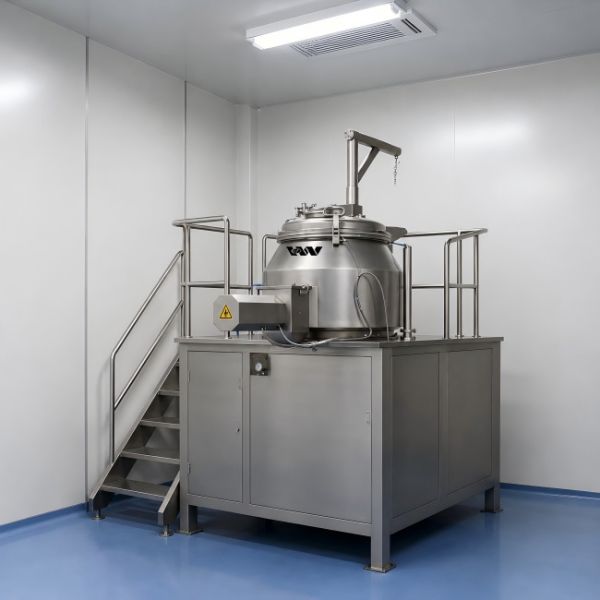

Solid Dosage Form High-position Wet Mixing Granulation Machine With PLC Control
Description:
Various powdered raw materials are precisely conveyed into the mixing container of the equipment via an automated batching system. Under the high-speed rotation and pushing action of the powerful agitator at the bottom, the materials quickly form a uniform fluidized state, achieving thorough mixing of the powder materials from all angles. After the uniform mixing process, the equipment's built-in high-pressure atomizing spray gun precisely injects a binder solution, allowing the dry powder to fully saturate and fuse, gradually forming a soft, moist material.
Under the combined shearing, crushing, and granulation forces of continuous stirring and turning, and the high-speed crushing and cutting blades on the cylinder wall, the moist material is rapidly shaped and refined, efficiently producing high-quality wet granules with uniform particle size, appropriate density, and excellent forming effect. The entire granulation process is closed and clean, with smooth and continuous steps, resulting in well-formed granules that fully comply with GMP production standards in the pharmaceutical, food, and chemical industries.The equipment complies with GMP production standards, producing excellent granulation results with uniform and compact particles. It can seamlessly integrate with subsequent drying and granulation equipment, is suitable for automated production lines, and is ideal for large-scale clean production in large enterprises.
Specification:
|
Model
|
HSH-50
|
HSH-150
|
HSH-250
|
HSH-300
|
HSH-400
|
HSH-500
|
H5H-500
|
|
Tolal volume(L)
|
50
|
150
|
250
|
300
|
400
|
600
|
600
|
|
EHeclive wolking volumel (L)
|
35
|
105
|
175
|
210
|
2B0
|
420
|
560
|
|
Output (kg/batch)
|
17.5
|
50
|
90
|
100
|
150
|
200
|
300
|
|
Granulating time (min)
|
8-10
|
8-10
|
8-10
|
8-10
|
8-10
|
8-10
|
8-10
|
|
Mixing speed(rpm)
|
20-194
|
20-184
|
20-166
|
20-166
|
20-166
|
20-160
|
20-120
|
|
Mixing power(kw)
|
5.5
|
11
|
22
|
30
|
30
|
45
|
55
|
|
Cutting power(kw)
|
3
|
4
|
5.5
|
7.5
|
7.5
|
11
|
15
|
|
Cutting speod(rpm)
|
1500/3000
|
|
Compressed air consumption(m3/min)
|
04
|
0.6
|
0.9
|
0.8
|
1.0
|
1.0
|
1.0
|
|
Air pressure(Mpa)
|
0.4-0.6
|
|
Weight (kg)
|
500
|
1000
|
1500
|
2000
|
2500
|
3000
|
3500
|
Application:
This machine is widely used in pharmaceutical, food, chemicals, feed, and other industries. It primarily handles the mixing and wet granulation of various powdered materials, making it an indispensable core piece of equipment for solid dosage form production. It can meet the processing needs of tablets, capsules, solid beverages, health powders, and chemical raw materials, effectively improving the flowability of powdered materials and solving production problems such as material segregation and dust generation.
Feature Advantage:
1.The entire equipment is crafted from high-quality stainless steel, featuring a robust structure and mirror-polished interior and exterior surfaces for easy cleaning with no blind spots, fully meeting GMP clean production requirements.
2.Featuring a high-level discharge design, it ensures smooth and thorough unloading with minimal material residue, effectively reducing raw material loss. Equipped with a combination of a bottom stirring paddle and a high-speed side-wall cutter, it delivers powerful stirring and shearing forces, ensuring uniform and rapid material mixing and high granulation efficiency.
3.The entire process is designed as a closed operation, preventing dust and pollution during production and ensuring a clean and hygienic working environment.
